SERVO CORONA BL-1028HV - full metal brushless - 30KG / 0.09SEC. / 8.4V

Código: 10328

Precio lista: 104.700,00

Producto en stock

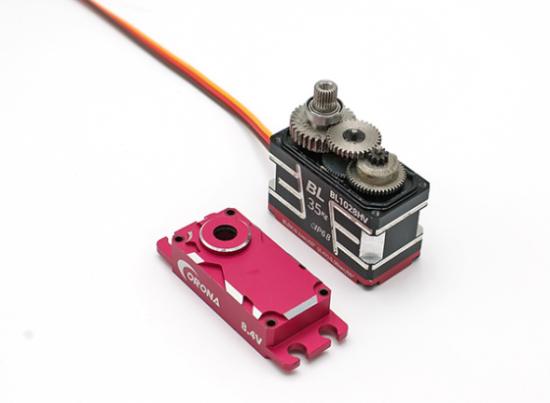

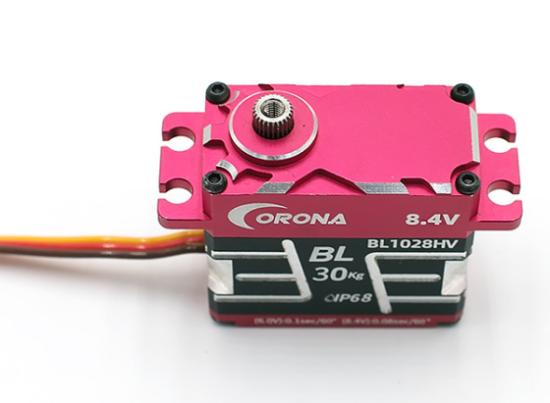

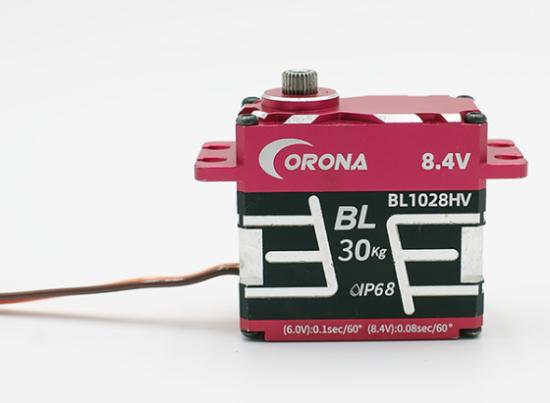

BL1028HV is a full metal brushless waterproof servo. It can be used in rc car and industrial application.
model: BL1028HV

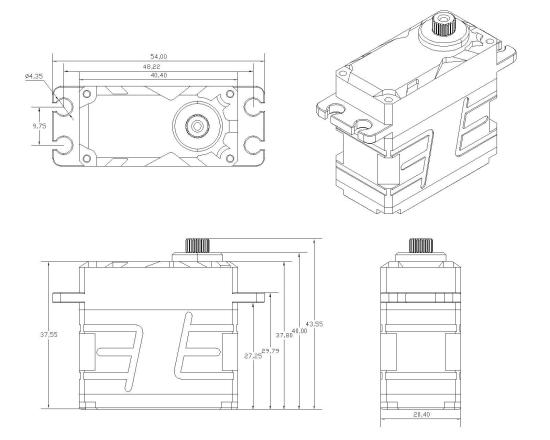

size: 40×21×38mm(1.57"×0.8"x1.5")
weight: 82g
Operating Voltage: 5.0V /6.0V /7.47 /8.4V
stand-by current: 44mA
Working rate: 0.12sec. 60° /0. 11sec. 60° /0. 10sec. 60°/0. 09sec. 60°
Stall Torque: 16kg. cm I 17kg. cm/21kg. cm/ 25kg. cm
Maximum stall torque: 32kg. cm / 35kg. cm/ 42kg. cm/50kg. cm
Stall current 2.2A/2.4A/3. 1A/3.6A
Waterproof performance IP68
Dead Bandwidth: ≤1uSec
work plan: 40°/unilateral pulse stroke 400us
Potentiometer Type: Square high precision indirect drive
High-precision rolling bearings:MR106
Gear Material: Metal
Cable length: 290m
Operating temperature: -20C~+60C
