SERVO CORONA - DS239HV - flat metal - 4.6kg / 0.13SEC. / 7.4V / 22GR
Código: 10336
Precio lista: 19.900,00
Producto en stock
Item? DS239HV

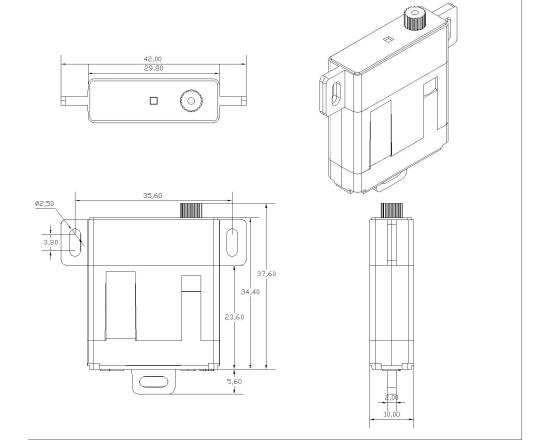

Size? 30x10x34.5mm(1.18"x0.4"x1.35")
Weight? 22g(0.77OZ)
Voltage? 6.0V / 7.4V
Current? 300mA / 400mA
Operating speed? 0.14sec.60º/ 0.13sec.60º
Stall Torque? 4.kg.cm / 4.6kg.cm
Dead Band? ≤3uSec
Operating Travel? 40º/one side pulse traveling 400us
Potentiometer 3 slider/IndirectDrive
Ball bearing MR85X2
Gear Metal
Connector wire length 215mm
Operating Temperature Range -20 ? to +60?
