SERVO KINGMAX BLS3009S - 30kg / 0.09SEC / 78GR / 8.4V
Código: 10360
Precio lista: 152.400,00
Producto en stock
| Item? | BLS3009S |
| Gear? | Steel gear |
| Spline? | Standard 25T |
| Motor? | Brushless motor |
| Bearing? | 2BB |
| Dead band? | 2μs default |
| Waterproof? | Yes |
| Operating Voltage? | DC5.0~8.4V |
| Rated working voltage? | DC 7.4V |
| Working frequency? | 1520μs/330hz |
| Working angle? | ±58°@900us-2100us |
| Working temperature? | -10?~+50? |
| Storage temperature? | -20?~+60? |

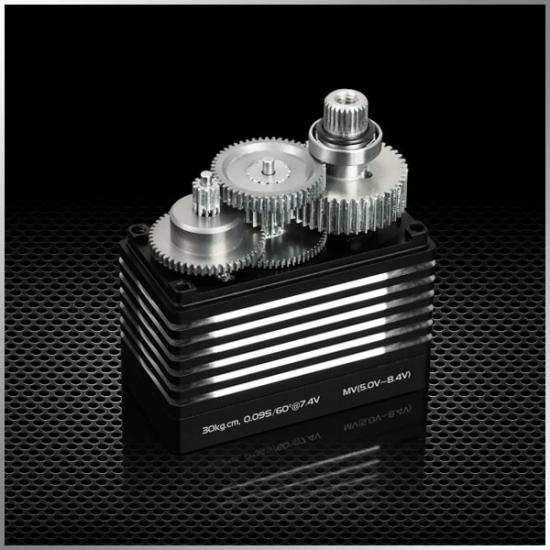

FEATURE:
-High performance, standard,Multivoltage digital servo
-High-precision steel gear
-Long-life potentiometer
-Full CNC aluminium case
-High quality brushless motor
-Dual ball bearing
-Waterproof
-Suit for 28-50CC gas engine, 1/5 car
SPECIFICATIONS:
Operating Speed (5.0V): 0.13sec/60 degrees
Operating Speed (6.0V): 0.11sec/60 degrees
Operating Speed (7.4V): 0.09sec/60 degrees
Operating Speed (8.4V): 0.08sec/60 degrees
Stall Torque (5.0V): 24.7kg.cm (343.08oz/in)
Stall Torque (6.0V): 26.8kg.cm (372.25oz/in)
Stall Torque (7.4V): 30kg.cm (416.7oz/in)
Stall Torque (8.4V): 34kg.cm (472.26oz/in)
Dimensions: 40X20X40.9mm /1.56X0.78X1.6in
Weight:78g (2.75oz)
Connector Wire Length: 300mm (11.8in)

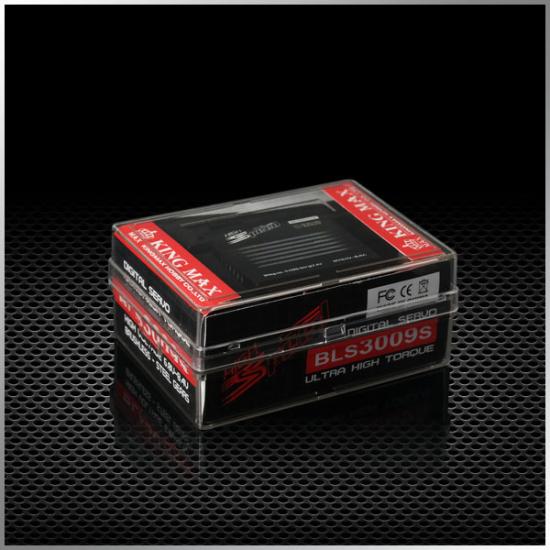

Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 130g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:13.5kg
