SERVO KINGMAX BLS2507S - 25kg / 0.07SEC / 69GR / 8.4V
Código: 10361
Precio lista: 144.700,00
Producto en stock
| Item? | BLS2507S |
| Gear? | Full metal |
| Spline? | Standard 25T |
| Motor? | Brushless motor |
| Bearing? | 2BB |
| Dead band? | 2μs default |
| Waterproof? | Yes |
| Operating Voltage? | DC5.0~8.4V |
| Rated working voltage? | DC 7.4V |
| Working frequency? | 1520μs/330hz |
| Working angle? | ±58°@900us-2100us |
| Working temperature? | -10?~+50? |
| Storage temperature? | -20?~+60? |
FEATURE:
-High performance, standard,Multivoltage digital servo

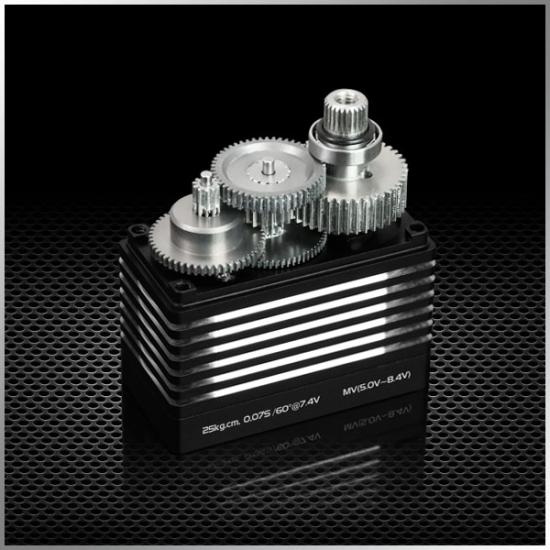

-High-precision full steel gears
-Long-life potentiometer
-Full CNC aluminium case
-High quality brushless motor
-Dual ball bearing
-Waterproof
-Suit for 1/8?1/10 nitro car, 28-35CC airplane, 700-800 class helicopter CCPM
SPECIFICATIONS:
Operating Speed (5.0V): 0.10sec/60 degrees
Operating Speed (6.0V): 0.08sec/60 degrees
Operating Speed (7.4V): 0.07sec/60 degrees
Operating Speed (8.4V): 0.06sec/60 degrees
Stall Torque (5.0V): 20kg.cm (277.8oz/in)
Stall Torque (6.0V): 22.2kg.cm (308.36oz/in)
Stall Torque (7.4V): 25kg.cm (347.25oz/in)
Stall Torque (8.4V): 28kg.cm (388.92oz/in)

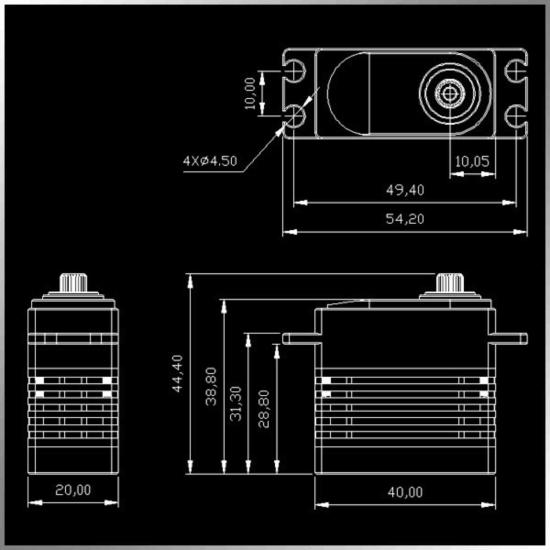

Dimensions: 40X20X40.9mm /1.56X0.78X1.6in
Weight:69g (2.43oz)
Connector Wire Length: 300mm (11.8in)

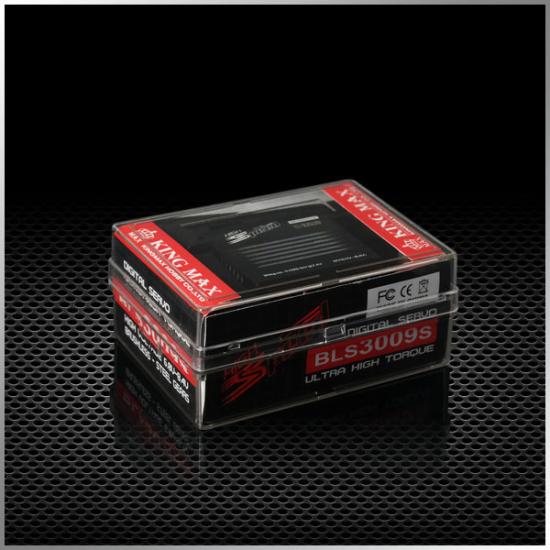

Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 121g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:12.6kg
