SERVO king max CLS0612W digital wing servo - 7KG / 0.1sec / 23gr / 8.4V

Código: 10363

Precio lista: 61.200,00

Producto en stock

FEATURE:

-- High performance, digital high voltage wing servo

-- High-precision metal gears with hard anodizing

-- Full CNC aluminium hulls and structure

-- High quality coreless motor

-- Dual ball bearings

SPECIFICATIONS:

Operating Speed (5.0V): 0.14sec/60 degrees

Operating Speed (6.0V): 0.12sec/60 degrees

Operating Speed (7.4V): 0.10sec/60 degrees

Operating Speed (8.4V): 0.09sec/60 degrees

Stall Torque (5.0V): 5.4kg.cm (75.01oz/in)

Stall Torque (6.0V): 6.2kg.cm (86.12oz/in)

Stall Torque (7.4V): 7.5kg.cm (104.18oz/in)

Stall Torque (8.4V): 8.5kg.cm (118.07oz/in)

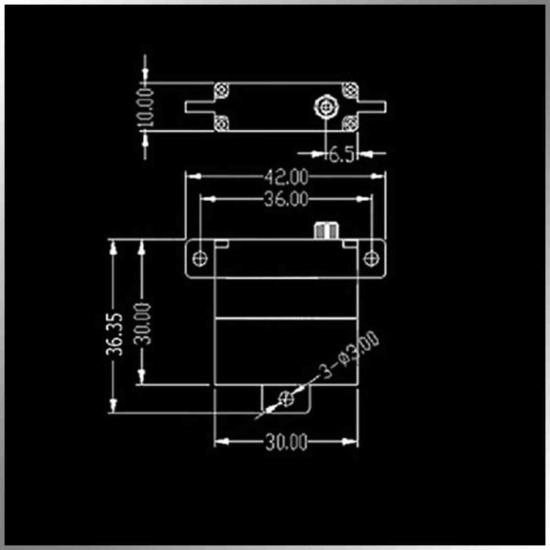

Dimensions: 30X10X30mm /1.17X0.39X1.17in

Weight: 23g (0.81oz)

Connector Wire Length: JR220 mm (8.58in)

Packing Detail:

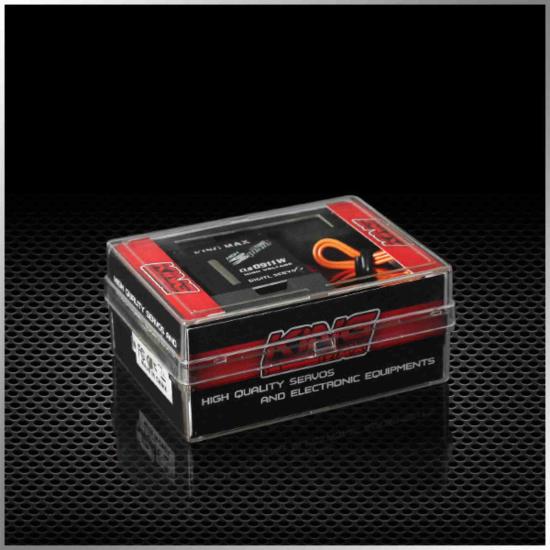

Transparent plastic box size: 83.5mmx63.5mmx37.5mm   weight: 69.8g

Carton box   size: 43x26.5x20.5cm   100sets/1CTN   Gross weight:7.43kg
