SERVO king max CLS0506W digital wing servo - 4.7KG / 0.06sec / 9.8gr / 8.4V
Código: 10364
Precio lista: 65.500,00
Producto en stock
| Item? | CLS0506W |
| Gear? | Steel gear |
| Spline? | Mini 15T |
| Motor? | Coreless motor |
| Bearing? | 2BB |
| Dead band? | 2μs default |
| Waterproof? | No |
| Operating Voltage? | DC5.0~8.4V |
| Rated working voltage? | DC 7.4V |
| Working frequency? | 1520μs/330hz |
| Working angle? | ±63°@800us-2200us |
| Working temperature? | -10?~+50? |
| Storage temperature? | -20?~+60? |
FEATURE:
-- High performance digital wing servo
-- High-precision steel gear
-- High quality coreless motor
-- Full CNC aluminium hulls and structure
-- Super long life
-- Dual ball bearings
SPECIFICATIONS:
Operating Speed(5.0V):0.10sec/60degrees
Operating Speed(6.0V):0.08sec/60degrees
Operating Speed(7.4V):0.06sec/60degrees
Operating Speed(8.4V):0.058sec/60degrees
Stall torque(7.4V):4.7kg.cm(65.28oz/in)
Maximum working torque(7.4V):2.6kg.cm(36.11oz/in)
Rated working torque(5.0V):1.0kg.cm(13.89oz/in)
Rated working torque(6.0V):1.3kg.cm(18.05oz/in)
Rated working torque(7.4V):1.7kg.cm(23.61oz/in)
Rated working torque(8.4V):1.9kg.cm(26.39oz/in)

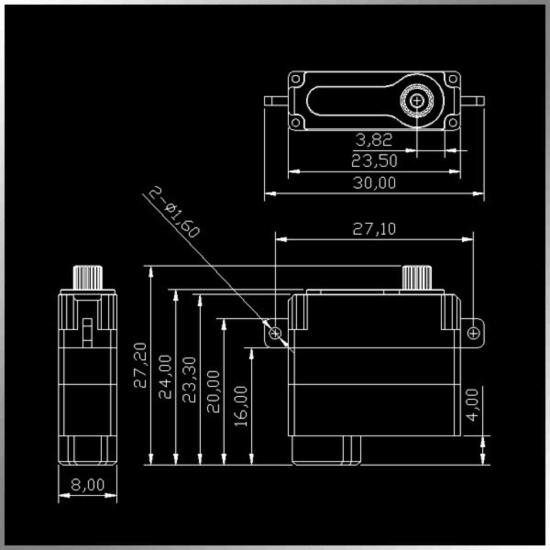

Dimensions:23.5*8*20mm/0.91X0.31X0.78in
Weight:9.8g(0.38oz)
Connector Wire Length:JR100mm(3.90in)
