SERVO king max DCS4503C - plastic gears standard - 3.8KG / 0.1sec / 54gr / 6.0V
Código: 10365
Precio lista: 21.500,00
Producto en stock
| Item? | DCS4503C |
| Gear? | Heavy duty resin |
| Spline? | Standard 25T |
| Motor? | DC motor |
| Bearing? | 2BB |
| Dead band? | 3μs default |
| Waterproof? | Yes |
| Operating Voltage? | DC4.8~6.0V |
| Rated working voltage? | DC 5.0V |
| Working frequency? | 1520μs/330hz |
| Working angle? | ±63°@800us-2200us |
| Working temperature? | -10?~+50? |
| Storage temperature? | -20?~+60? |
FEATURE:
-- High performance digital standard servo
-- High-precision plastic gear
-- High quality brush motor
-- Dual ball bearing
-- Waterproof
SPECIFICATIONS:
Operating Speed (4.8V): 0.12sec/60 degrees at no load
Operating Speed (6.0V): 0.10sec/60 degrees at no load
Stall Torque (4.8V): 3.12 kg.cm (43.34 oz/in)
Stall Torque (6.0V): 3.85 kg.cm (53.48oz/in)

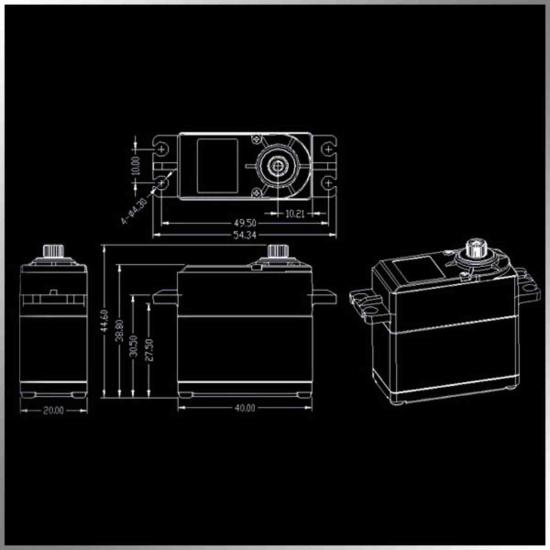

Dimensions: 40x20x38.3mm /1.57x0.79x1.51 in
Weight: 45g (1.59oz)
Connector Wire Length: JR300 mm (11.81in)

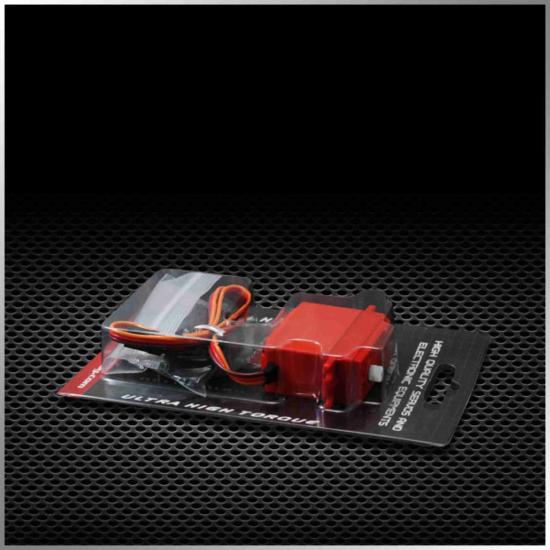

Packing Detail:
Blister size: 113mmx79mmx25mm weight: 82.3g
Carton box size: 47x25x21cm 96sets/1CTN Gross weight: 8.3kg
